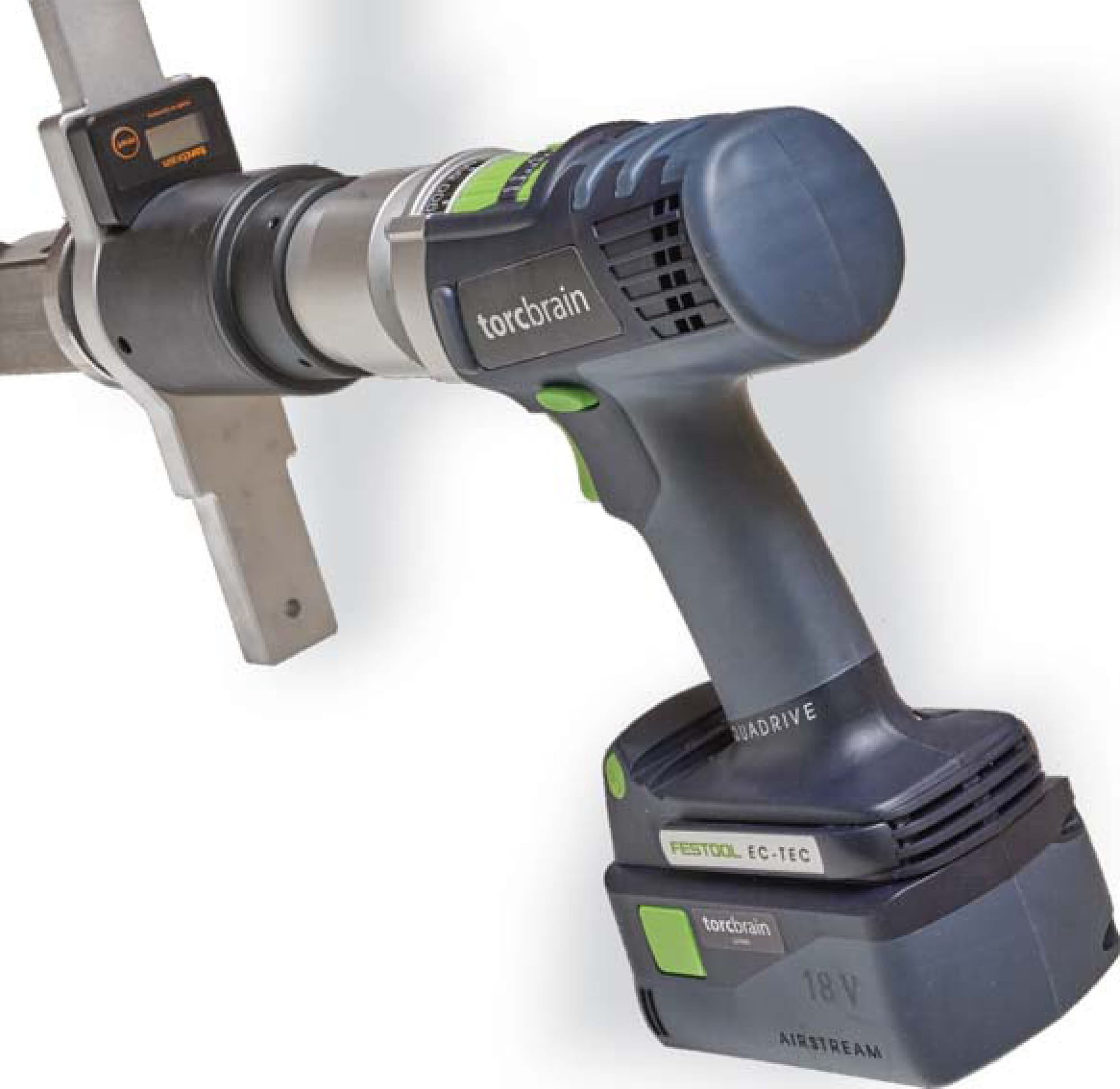

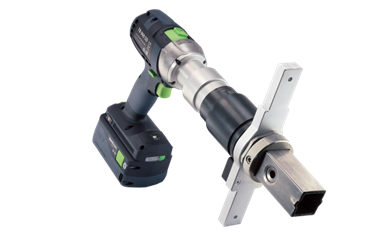

EIT cordless portable valve actuators were designed to exceed the industry requirements for a mobile, reliable and
accurate valve actuation tool. A range of application-engineered accessories allows the tool to be used safely by a
single operator on a number of different types of handwheels and applications.
|
|
Features and Benefits |
Links to other products and information |
Increased mobility:
- Low weight due to the use of Li-Ion batteries and the elimination of electric cables or air supply hoses
- Drive unit can be swivelled, ideal for hard to reach valves
- Comfortable operation, excellent ergonomics and low weight
Higher productivity:
- Flexible and mobile due to cordless drive system
- Leightweight, fast, accurate and reliable
- Max. valve protection with adjustable torque control (4 speed
gearbox with 48 torque settings) and up to 900 Nm
- Safe operation, auto shut-off once selected torque is reached
- Fingertip controls on, off, forward - reverse
- Easy one man setup and operation - no operating tools required
- Tool design allows for good operator-feedback on the valve,
allowing repetitive back and forth motion required for proper valve cleaning
- Maintenance free, brushless EC-motor
- Made in Germany
|

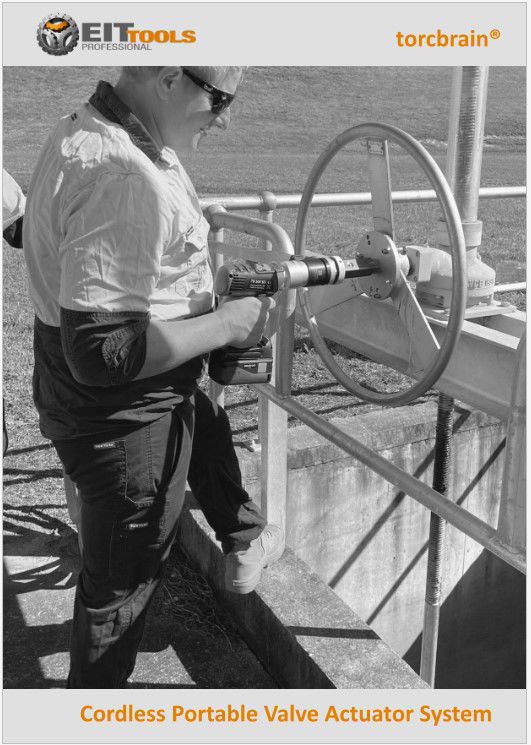

 download
brochure 175 Kb
|
 |
| |
EIT torcbrain portable cordless valve actuators are an efficient and cost effective
alternative to a dedicated valve actuator. Wherever there are
manually operated valves that have high operating torques, hundreds
of handwheel turns to open/close or are just difficult to operate then
here is your solution.
 EIT torcbrain cordless valve actuators can be used where valve size,
pressure rating or work environmental conditions would normally demand
a permanent dedicated actuator or would require a work crew.
•Low cost alternative to permanent dedicated actuators
•No requirement for a permanent power supply
•Ideal for minimum facilities installations
•Suitable for all climatic conditions
•Wide band torque capability with variable torque adjustment
•Ideal for moving tight or partially-seized valves
•Adaptable to most sizes/types of valve
•Eliminates operator fatigue and greatly reduces the risk of injury
•Reduces work crew tasks to one-man operation
•Fully portable
| Photo |
Type
/
Model-No. |
Torque
max. Nm |
Torque
settings |
Speed rpm |
Square
drive
|
Dim
L mm |
Dim
W mm |
Dim
H mm |
Weight
kg |
|
EIT-TB70SD
|
70 |
48 |
160 |
1/2" |
255 |
42 |
220 |
2.5 |
EIT-TB300SD |
300 |
48 |
140 |
3/4" |
285 |
58 |
220 |
3.5 |
EIT-TB900SD |
900 |
48 |
52 |
1" |
315 |
68 |
220 |
4.2 |
|
|
All EIT Torcbrain Cordless Valve actuators wrenches come fully
calibrated and complete with:
|
|
|
|
Each tool offers 48 different torque settings available through the high quality 4 speed mechanical gearbox and twelve available torque settings.
Once the selected torque is achieved, an acoustic signal is given and the tool automatically shuts off. No clutch, no ratcheting, no variances.
Torque accuracy is +/- 3%, repeatability +/-
2%
|
| |
|
back to top

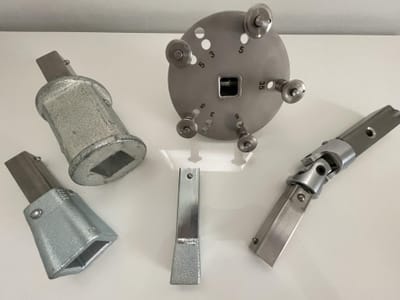

Accessories
| Photo |
Type
/
Model-No. |
Description |
Weight
kg |
|
EIT-TBN583 / 158
|
Universal Hand wheel adaptor
allows the operation of non-rising stem handwheels for
water and industrial applications.
Quick change spring loaded pins can be placed into various
positions on the adaptor plate according to the size of the
hand wheel.
OD 180mm, pin circle 140mm, suitable for most hubs over
D = 140mm. |
2.5 |
|
EIT TBN584
|
Symmetrical two man torque support arm
This torque reaction bar is available as an alternative to the
standard torque reaction bar. It includes two detachable
arms each 800mm long. Total length approx. 2000 mm. |
3.0 |
|
EIT-TBN588
|

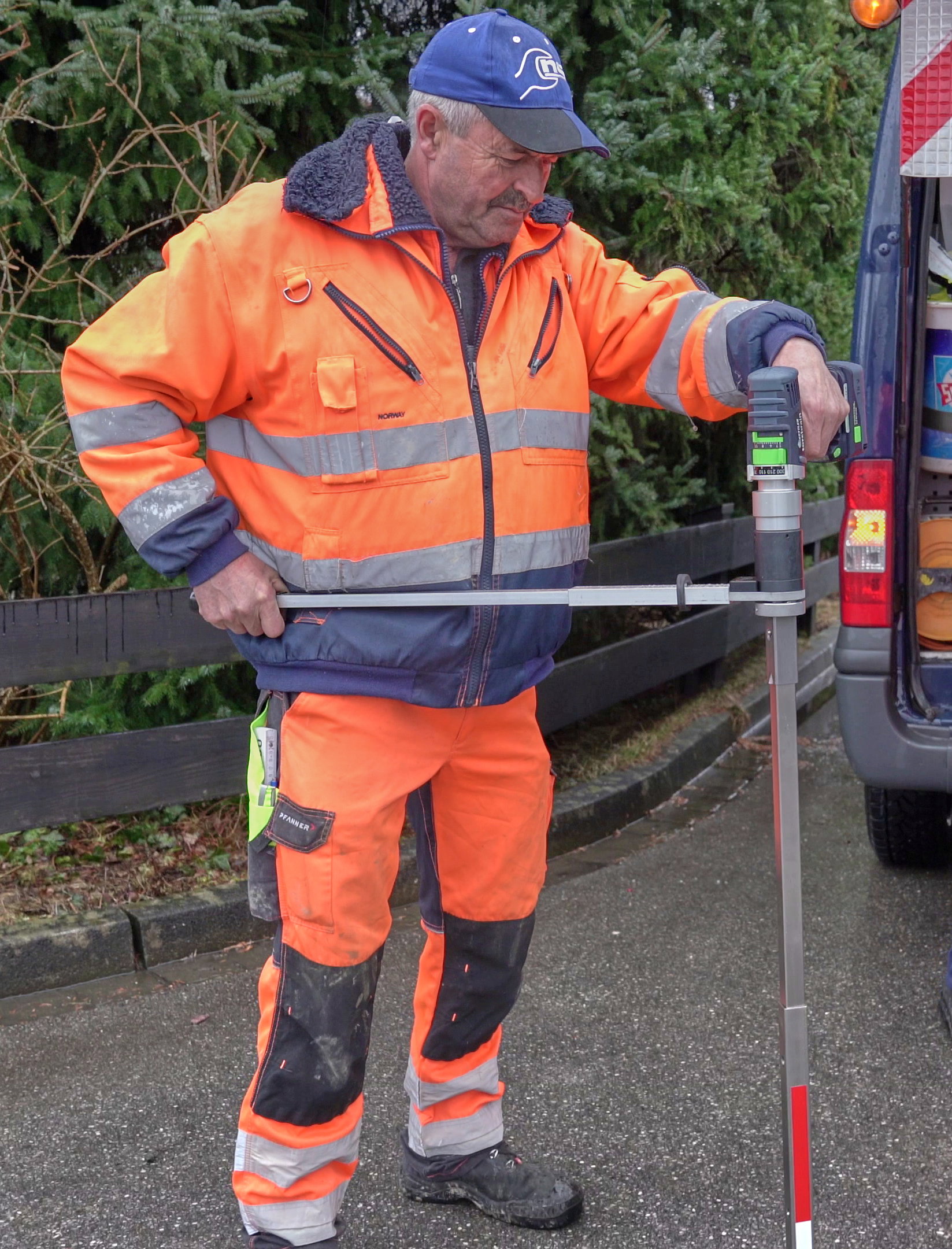

Telescopic drive extensions
Telescoping drive extenstions are constructed of high grade
stainless steel square tube 30mm with spring
loaded pins , adjustable from 750 mm to 1150
mm.
Ideal to operate valves set in pits or in otherwise
hard to reach positions. |
3.0 |
|
EIT-TBN590
|
12V Power Converter
Robust and reliable 12V Model DC to AC power converter,
allows you to quickly and easily power the charger anywhere,
anytime. Ideal for work in remote areas. |
3.0 |
 |
EIT-TBN295
|
Revolution counter
Counts the revolutions of the valve actuator automatically with the contact free electronic counter. Ideal for valves with many revolutions. |
1.0 |
|
|
|
|
|
|
|
|
|
|
