SYSTEM ADAPTORS FOR HANDWHEELS

SYSTEM ADAPTORS FOR HANDWHEELS

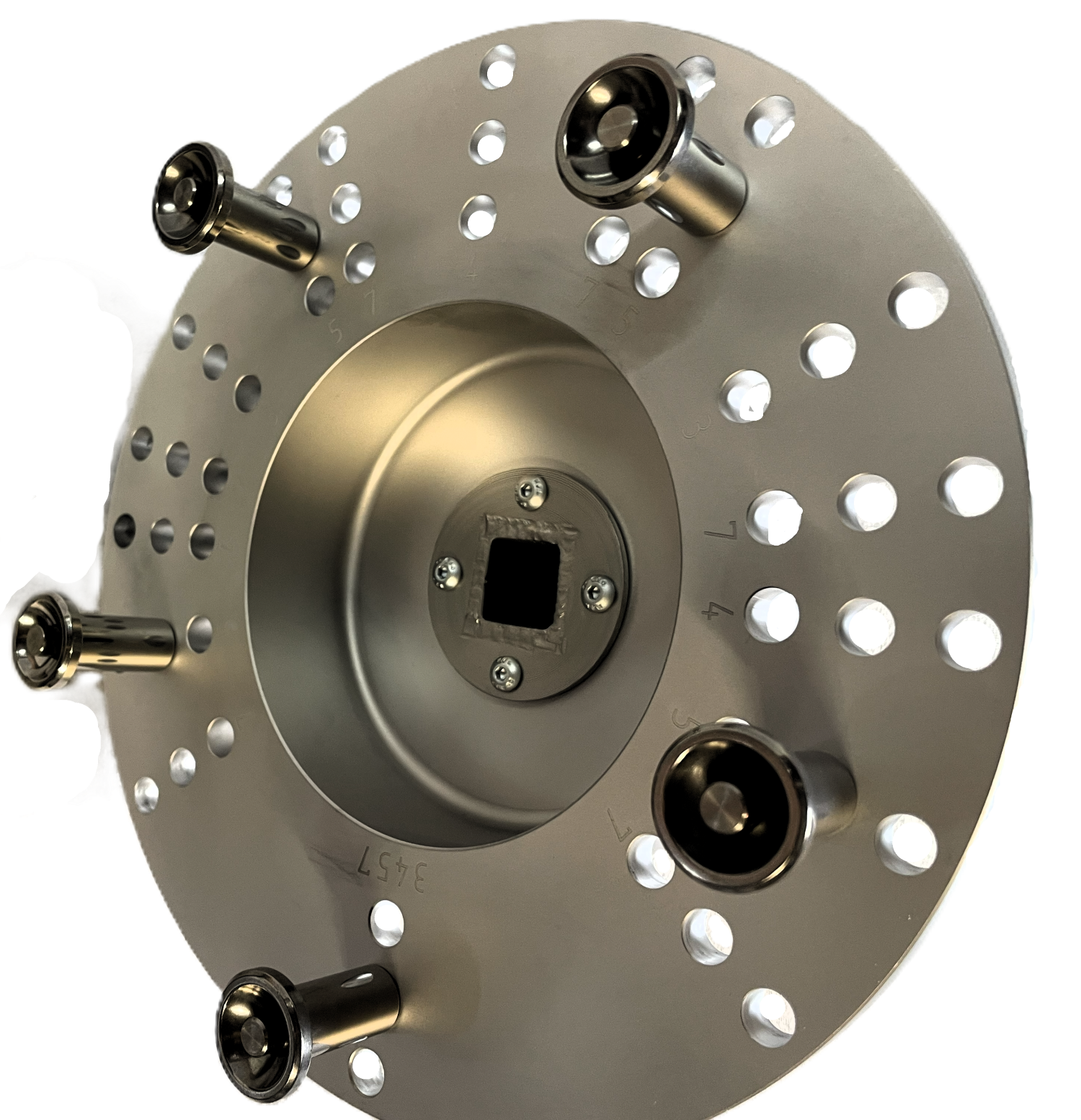

Hand Wheel Adapter for non-rising stem handwheels

Facilitates the operation of non-rising handwheels. The quick-change spring-loaded driving pins Dia 10mm can be adjusted with one hand, without requiring any tools, to accommodate 3, 4 and 5 spoked handwheels. Adaptor plate dia. 150mm

PhotoTypeTo suit model
hara300sysTB300SD
hara900sysTB900SD



Hand Wheel Adaptor for rising spindles

Enables the operation of handwheels with rising spindles, with a standard length of 650mm. Custom lengths are also offered. The quick-change driving pins Dia 10mm can be adjusted single-handedly and without tools, to accommodate 3 and 5 spoked handwheels. Inner diameter of the tube extension is 56mm to accommodate rising spindles up to 52mm. Adaptor plate Dia. 150mm

PhotoTypeTo suit model
NEW
hara300sysL650		TB300SD
hara900sysL650TB900SD

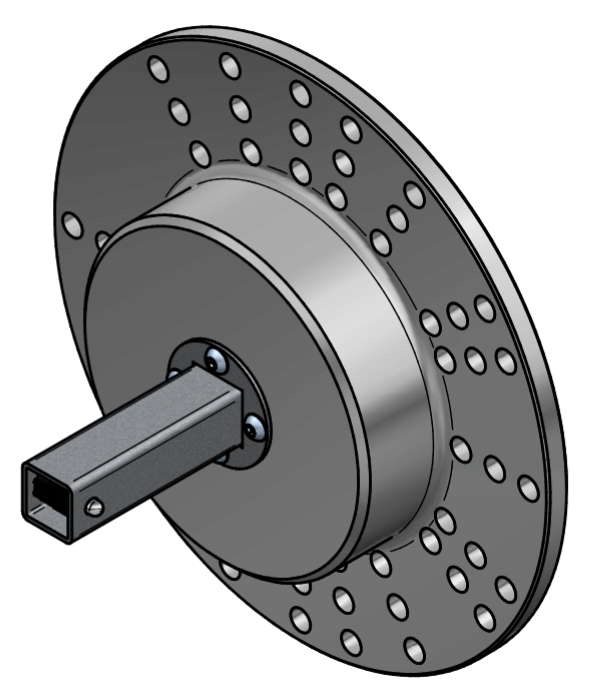

Adaptor for large 6 spoke hand wheels and rising spindle
This new, custom-made adaptor can be used for handwheels diameter 350mm with 6 spokes and spoke diameter of around 30mm. It features a recess of 40mm for the protruding hub of the handwheel. Made from stainless steel.

PhotoTypeTo suit model
NEW
hara350sys		TB900SD


Adaptor for large Hand Wheels

The extension plate increases the diameter of the standard handwheel from 150 to 250mm. It is secured using three knurled screws onto the standard handwheel adaptors type Hara. The quick-change pins can be adjusted to accommodate 3/4/5 spoked handwheels without requiring any tools This Adaptor can be used for both types of valves with rising or non-rising valve stems.

PhotoTypeTo suit model
hara250TB300SD
TB900SD
